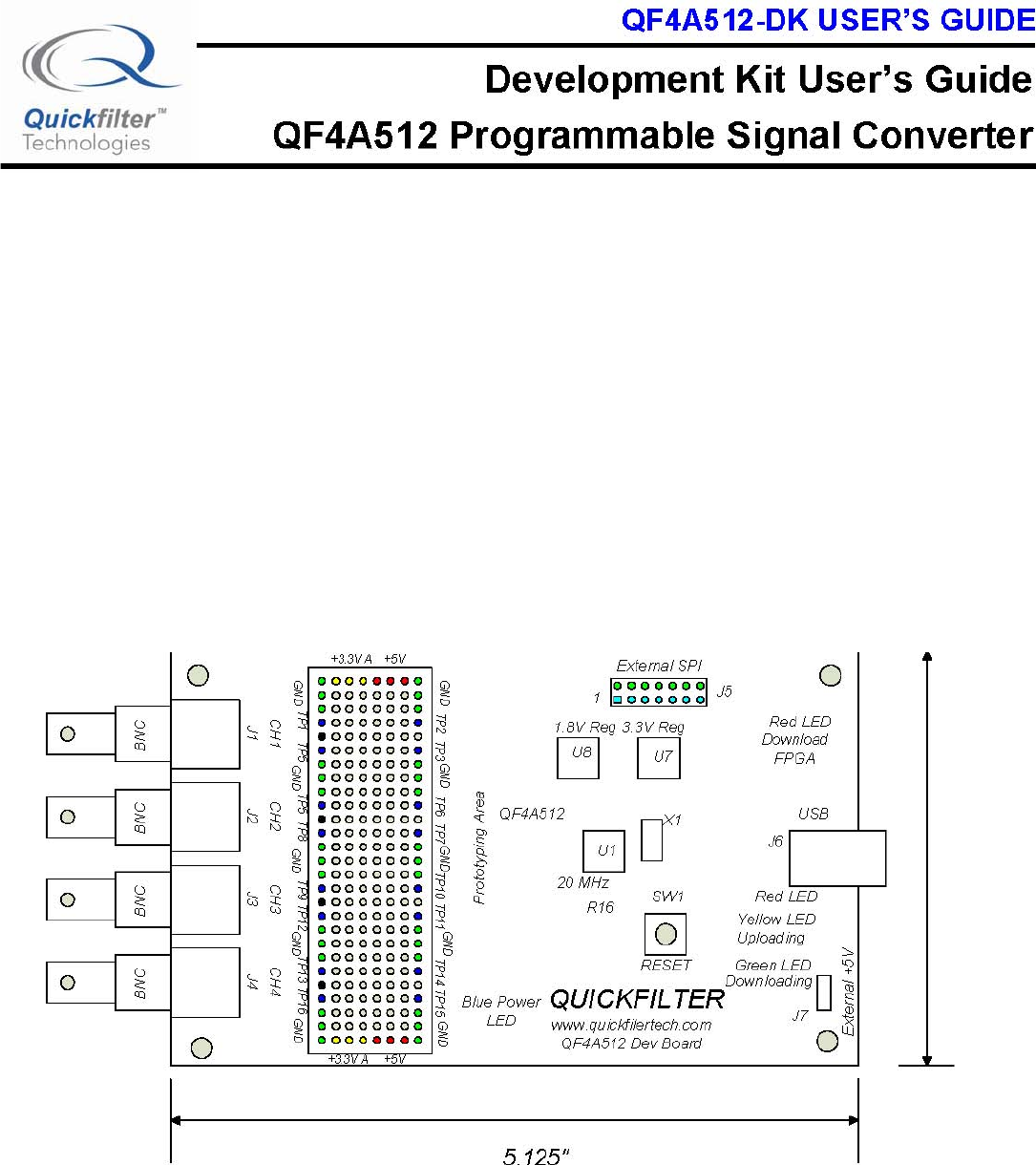

QF4A512-DK USER’S GUIDE Development Kit User’s Guide QF4A512 Programmable Signal Converter 1) Introduction The Development Kit User’s Guid

Development Kit User’s Guide QF4A512-DK Quickfilter Development Board, Power 2.5V Regulator designed for reverse current protection 2.5V REGULATO

Development Kit User’s Guide QF4A512-DK Contact Information: Quickfilter Technologies, Inc. 1024 S. Greenville Avenue, Suite 100 Allen, TX 75002-

Supplying Power: Figure 1 shows red circles for +4.5 Volts brought to the prototyping area, yellow circles for +3.3V, green for Ground, dark blue f

Figure 2 shows the actual test points that connect the signal path through the prototyping area. By removing for example C2, Channel 1 is still si

6) Running the Quickfilter development board’s QF4A512 using and external microcontroller: The QF4A512 – DK development board was designed for all

Figure 4 8) List of Test Point Definitions: TP1 = Analog Input BNC Channel 1 (Negative) TP2 = Analog Input Prototyping Area Channel 1 (Negative

Development Kit User’s Guide QF4A512-DK 9) Schematics: The following five pages are the full schematics for the QF4A512 Development Kit. Qui

Development Kit User’s Guide QF4A512-DK Quickfilter Development Board, QF4A512 ANALOG INPUTS Prototype work,Channels 1-4 remove caps for Protect

Development Kit User’s Guide QF4A512-DK Quickfilter Development Board, 40 MHz SPI Interface SPI 2V5 2V5 2V5 2V5 3V3X 3V3X 3V3X 3V3X © 2005 Qu

Development Kit User’s Guide QF4A512-DK Quickfilter Development Board, USB 500mA Continuous © 2005 Quickfilter Technologies, Inc. Rev A1, May 0
